A Float Level Detector that is virtually indestructible so you can spend less on maintenance.
Level detectors of the past haven’t lived up to the needs of users…
Traditional level detectors and floats made with copper wires break easily and can be dangerous. That means more money spent on new floats and more hours spent maintaining something that should be “set and forget.”
But OPTI-FLOAT® is different. Here’s how:

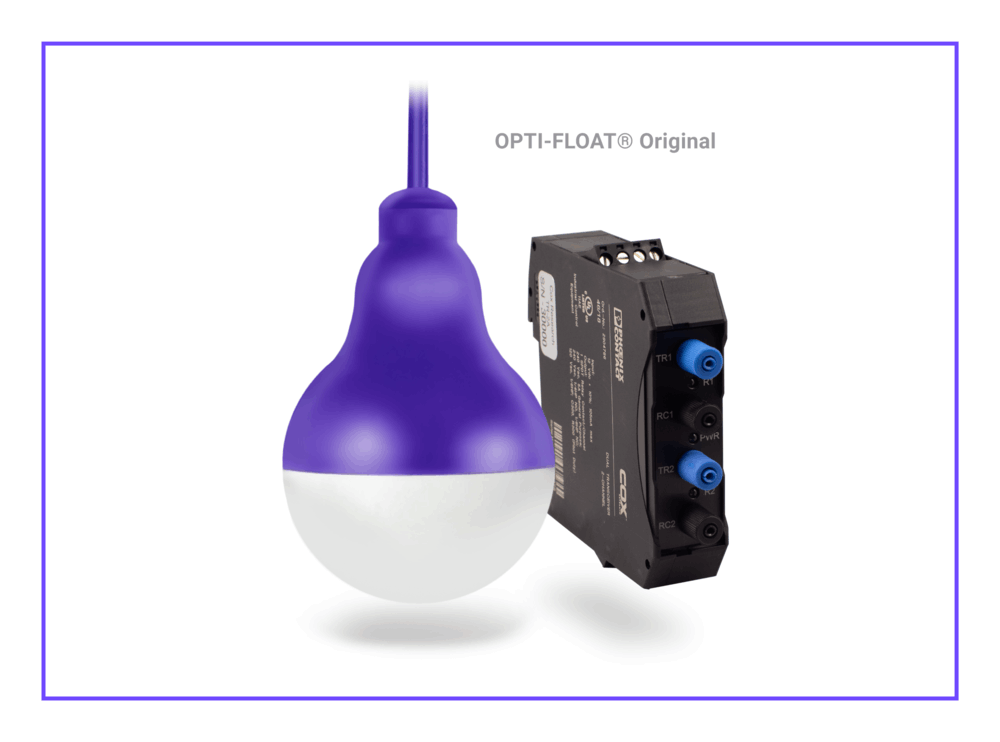

The OPTI-FLOAT® level detector is a revolutionary innovation in discrete level detectors. It’s made of safe, recyclable materials and is mercury and lead-free.
Built to last for millions of operations.
Compare Models & Features
Products
Operating Voltage: 12 VDC ± 10%
Power Consumption: 1.2 VA max
Output: Relay SPDT 3 amp @ 240VAC, each channel
Ambient operating temperature: -15 to +130F (-25 to +70C)
UL Listed
Part Number: OPTI - TR2A
120/240 VAC-12VDC, 10 Watt
Class 2 DIN Rail Mounted
3.58"H x 0.71"W x 2.19"D
UL Listed
Part Number: OPTI- PS1
Bundle includes 2 floats, 1 transceiver, 1 power supply, cable stripper and cutter.
Available with 30', 60' and 100' floats, weighted or unweighted.
Bundle includes 3 floats, 2 transceivers, 1 power supply, cable stripper, and cutter.
Available with 30', 60', and 100' floats, weighted or unweighted.
Bundle includes 4 floats, 2 transceivers, 1 power supply, cable stripper, and cutter.
Available with 30', 60', and 100' floats, weighted or unweighted.
OPTI-RK4 pictured. Others available for 2, 4, 6 and 8 float systems.
OPTI-OA4 pictured. Others available for 2, 4, 6 and 8 float systems.
A. F1 = Narrow Angle Float
B. 30 = 30' Cable, 60 = 60" Cable, XX = XX' Cable
C. WT1 = External Weight
Specs: OPTI-F1/A 30/B
Mini liquid level detector
SPEC - MINI - F12, F25, F50, or F75
MINI-PS2
MINI-TR3
Bundle includes 2 floats, 2 transceivers, 1 power supply, tool/wiring kit, 1 space saver bracket.
Available with 15', 25', 50', 75' floats, weighted or unweighted.
Bundle includes 3 floats, 3 transceivers, 1 power supply, tool/wiring kit, 1 space saver bracket.
Available with 15', 25', 50', 75' floats, weighted or unweighted.
Bundle includes 4 floats, 4 transceivers, 1 power supply, tool/wiring kit, 1 space saver bracket.
Available with 15', 25', 50', 75' floats, weighted or unweighted.
For OPTI-FLOAT® Mini
MINI-WK
MINI-WT2
OPTI-CC1
OPTI-CS1
OPTI-UAB-1
OPTI-FLOAT® Original OPTI-WT1
MINI-SSB
OPT-SP2
