Metering Manholes

Manholes are manufactured as a total flow monitoring solution. The metering manholes may be supplied with any type of flume or flow measurement weir integral to the structure.

VCP Fiberglass Metering Manholes

The strong one-piece design assures that the manhole will never leak, eliminating infiltration at the site. Fiberglass manholes weigh only a fraction of the weight of pre-cast manholes, allowing for quick and easy installation with less equipment and labor.

Fiberglass construction ensures that corrosive liquids and gases will not cause structural problems, enabling the manhole to serve a long, maintenance-free life. Their compact and lightweight design makes them ideal for both industrial and municipal applications.

Manholes are offered in two sizes, 48 inch or 60 inch diameters. Each size can be configured with either a hinged fiberglass cover or H-2O adapter cover for installation in traffic areas. Both styles are completely leak free and meet equivalent load ratings as those of the manhole body.
VCP Fiberglass Metering Manhole

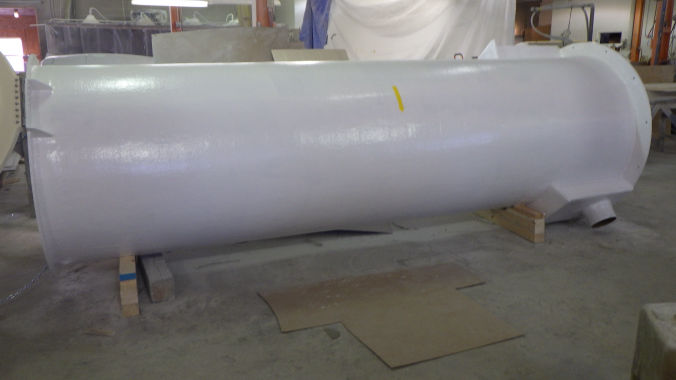

One-piece FRP design, this manhole will never leak eliminating infiltration, arriving at the job site ready for installation.

VCP Fiberglass Metering Manhole

When compared to pre cast concrete, fiberglass manholes are lightweight and easier to handle, allowing for a quicker installation.

VCP Fiberglass Metering Manhole

Installation is simple with only the pipe connections to complete using supplied neoprene pipe couplers.

VCP Fiberglass Metering Manhole

Concrete is poured at the base of the manhole and leveled to the top of this 3 inch Parshall flume to eliminate deflection allowing for accurate flow measurement.

VCP Fiberglass Metering Manhole

Ultrasonic bracket for the flow meter and fiberglass access ladder shown inside the metering manhole.

VCP Fiberglass Metering Manhole

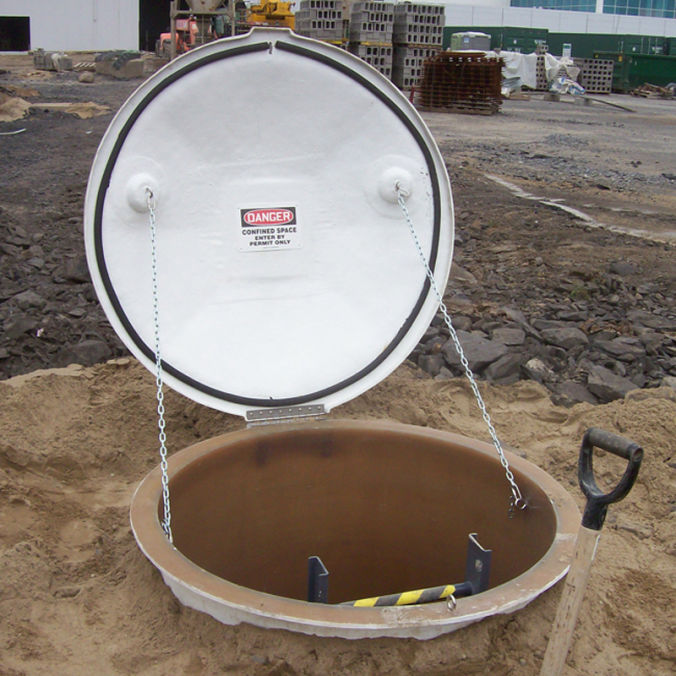

Lightweight hinged cover allows easy access to the manhole. H-20 covers are also available.

VCP Fiberglass Metering Manhole

60 inch Metering Manhole with Parshall Flume.

VCP Fiberglass Metering Manhole

60 inch Metering Manhole.

VCP Fiberglass Metering Manhole

Extra-Large Trapezoidal Flume is installed in a 48 inch diameter Fiberglass Metering Manhole. This Packaged Metering System is shipped complete at your specified depth to include: Fiberglass Manhole, Fiberglass Flume, Fiberglass Ladder, Pipe Stubs, and Anti-Flotation Flange. Additional Flume Options are available upon request.

VCP Fiberglass Metering Manhole

Turn Key Fiberglass Metering Manhole. Perfect for metering effluent flow. Parshall flume included in manhole. Traffic rated adaptor and cover allows for easy drop in place quick metering solution. Ties into existing line with neoprene couplers. Full metering capabilities within hours of completed installation.

VCP Fiberglass Metering Manhole

This Metering Manhole contains a 3 inch Parshall Flume.

VCP Fiberglass Metering Manhole

This Metering Manhole went to Chicken of the Sea Company in Lyons, GA.
