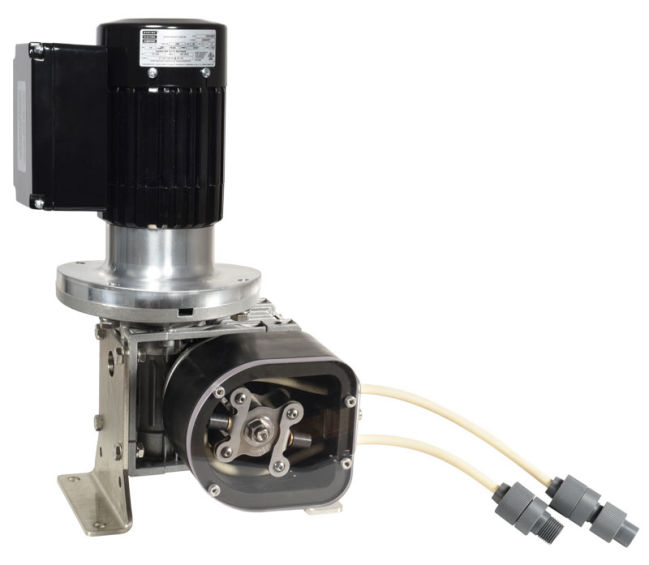

FLOMOTION V21E SERIES EXPLOSION PROOF INDUSTRIAL HOSE PUMPS
Designed to meet the demanding requirements of chemical injection and dispensing applications.

FLOMOTION V21E SERIES EXPLOSION PROOF INDUSTRIAL HOSE PUMPS

Exceptional self-priming capabilities make the V21E Series an ideal choice for hard-to-handle chemicals such as sodium hypochlorite, hydrogen peroxide, methanol or viscous polymers.

An extremely wide range of flow outputs can be obtained by simply changing the tubing size or pump speed.

One size pumphead accepts six standard tubing sizes. The sealed, spring-loaded pumphead rollers provide extended tubing life and automatically compensate for minor variations in pump tube wall thickness.

Operating Manual - pdf

Data Sheet - pdf

V21E SERIES FEATURES:
  • Flows to 52 GPH, Pressures to 100 psi
  • Class-1/Div-2 Explosion Proof motor
  • Rugged industrial duty pump uses standard 56C face motors
  • Seal-less pumping technology
  • Self-priming – suction lifts to 30 ft.
  • No check valves – few moving parts
  • A wide range of flow outputs can be obtained by simply changing the tubing size or pump speed
  • Dry run capability
