Patented TFD (Tube Failure Detection) system protects against chemical spills from a worn out tube and activates an alarm output relay
Self-Priming against maximum line pressure
Cannot Vapor Lock or Lose Prime
Four pump tube material options: Norprene®, Norprene® Chemical, Tygothane®, and FKM
New and Improved Pump Head provides increased performance and strength.
Max Feed: 3.96 GPH (15 LPH)
Max Pressure: 100 PSI (6.9 bar)
Lean more...
Tank sizes include:
7 gallon
15 gallon
30 gallon
Features Include:

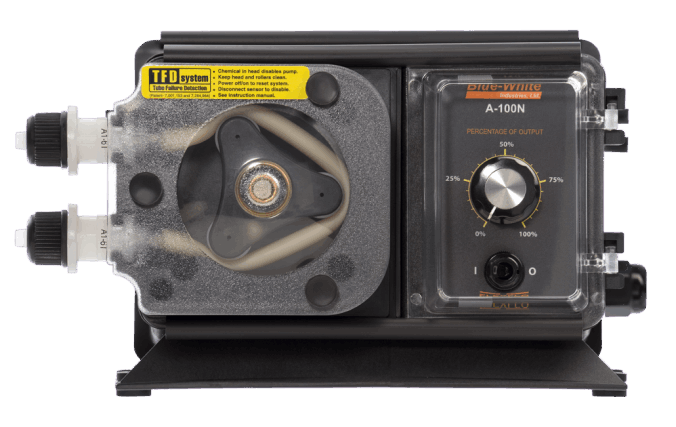

Max output 3.96 GPH (15 LPH) A-100N peristaltic pump
Ships with all necessary accessories.
The polyethylene tank has extra heavy wall thickness for stability and chemical resistance.
UV inhibitors for sunlight protection.
The tank lid can be placed in the open, closed, or vented position.
Convenient rectangular shape is raised off the floor for easy wash down.
Max Feed: 3.96 GPH (15 LPH) – FLEXFLO® A-100N
Tank sizes include: 7 gallon, 15 gallon, 30 gallon
Learn more...
Peristaltic pump design does not have valves that can clog.
Self priming – even against maximum line pressure. By-pass valves are not required. ○ Cannot vapor lock or lose prime.
Outputs to 4.67 GPH (17.7 LPH).
Output pressures to 25 PSI (1.7 bar).
Output volume is not affected by changes in back pressure.
Patented pump tube design installs easily and stays centered on the rollers without manual adjustment.
Two pump tubes supplied with each pump.
No extra tubing required.
Max Feed: 4.67 GPH (17.7 LPH)
Max Pressure: 25 PSI (1.7 bar)
Learn more...
Feed Rates to 17.2 GPH (65.1 LPH)
Pressures to 125 PSI
4-20mA (A2V only), Pulse Input (A2V only) and Manual Speed Control
Optional A2V communication protocols: Modbus, Profibus and Industrial Ethernet
100:1 Turndown Ratio
Variable Speed DC Motor
NEMA 4X (IP 66) Washdown Duty
2 Year Warranty
NEW! Flex-A-Prene® Tubing with more than 4X longer tube life.
Patented Tube Failure Detection
Max Feed: 17.2 GPH (65.1 LPH)
Max Pressure: 125 PSI (8.6 bar)
SCADA Inputs include: 4-20mA and pulse inputs for remote external speed control
and either powered 6-24 VDC or non-powered dry contact closure for remote start/stop.
Optional: remote communications, Profibus DPV1, Modbus RTU, Modbus-TCP, EtherNet/IP, and Profinet RT I/O
Operator friendly digital touch pad with menu driven software.
Backlit LCD displays motor speed, input signal values, service and alarm status.
Outputs include: one 250V/3A relay to monitor TFD (Tube Failure System) and
FVS (Flow Verification System). A 4-20mA analog output signal scaled to the motor speed is optional.
Compatible with Blue-White’s output Flow Verification Sensor (FVS) system.
Two CNC precision machined squeeze rollers and two alignment rollers for optimum squeeze,
unparalleled accuracy, and tube life.
Heavy duty rotor – single piece plastic rotor means no flexing and increased accuracy with
no metal springs or hinges to corrode.
Variable speed DC motor.
Specially engineered tubing for long life at high pressures. Meets FDA 21 CFR requirements
for food contact applications.
Learn More...

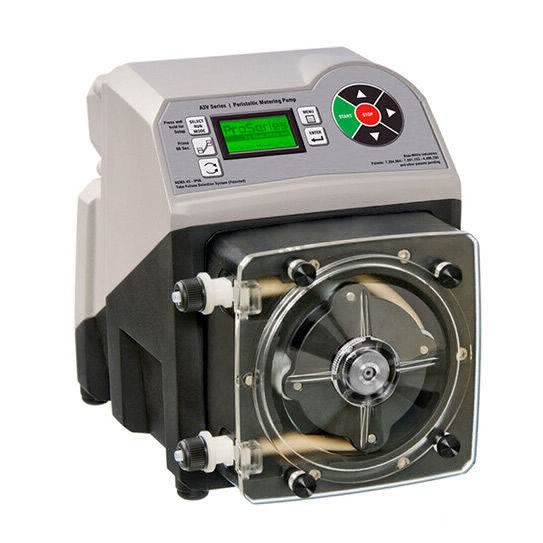

Feed Rates to 33.3 GPH
Pressures to 125 PSI
4-20mA (A3V only), Pulse Input (A3V only) and Manual Speed Control
2500:1 Turndown ratio
Patented Tube Failure Detection
Brushless DC Motor
NEMA 4X (IP 66) Washdown
2 Year Warranty
NEW! Flex-A-Prene® Tubing with more than 4X longer tube life.
Patented Tube Failure Detection
Max Feed: 33 GPH (125 LPH)
Max Pressure: 125 PSI (8.6 bar)
SCADA Inputs include: 4-20mA, 0-10Vdc, and Pulse inputs for remote external
speed control and 0-30 VDC / contact closure remote start/stop.
Operator friendly digital touch pad with menu driven software.
VGA Graphic multi-color backlit LCD displays remote/local control status, motor speed,
output rate, input signal values, service and alarm status.
Outputs include: Scalable 4-20mA or pulse, one 250V/6A relay and three 115V/1A contact closures
assignable to monitor up to 17 different pump functions including TFD, FVS, remote/local
control setting, motor on, fault, current operating mode, and others.
Compatible with Blue-White’s output Flow Verification Sensor (FVS) system.
Two CNC precision machined squeeze rollers and two alignment rollers for optimum squeeze,
unparalleled accuracy, and tube life.
Heavy duty rotor – single piece plastic rotor means no flexing and increased accuracy with
no metal springs or hinges to corrode.
No maintenance brushless variable speed motor.
Specially engineered tubing for long life at high pressures. Meets FDA 21 CFR requirements
for food contact applications.
Learn more...
Feed Rates to 158.5 GPH
Pressures to 125 PSI
4-20mA (A4V only), Pulse Input (A4V only) and Manual Speed Control
2500:1 Turndown ratio
Patented Tube Failure Detection
Brushless DC Motor
NEMA 4X (IP 66) Washdown
2 Year Warranty
Max Feed: 158 GPH (600 LPH)
Max Pressure: 125 PSI (8.6 bar)
SCADA Inputs include: 4-20mA, 0-10Vdc, and Pulse inputs for remote external
speed control and 0-30 VDC / contact closure remote start/stop.
Operator friendly digital touch pad with menu driven software.
VGA Graphic multi-color backlit LCD displays remote/local control status, motor speed,
output rate, input signal values, service and alarm status.
Outputs include: Scalable 4-20mA or pulse, one 250V/6A relay and three 115V/1A contact closures
assignable to monitor up to 17 different pump functions including TFD, FVS, remote/local
control setting, motor on, fault, current operating mode, and others.
Compatible with Blue-White’s output Flow Verification Sensor (FVS) system.
Two CNC precision machined squeeze rollers and two alignment rollers for optimum squeeze,
unparalleled accuracy, and tube life.
Heavy duty rotor – single piece plastic rotor means no flexing and increased accuracy with
no metal springs or hinges to corrode.
No maintenance brushless variable speed motor.
Specially engineered tubing for long life at high pressures. Meets FDA 21 CFR requirements
for food contact applications.
Learn more...
