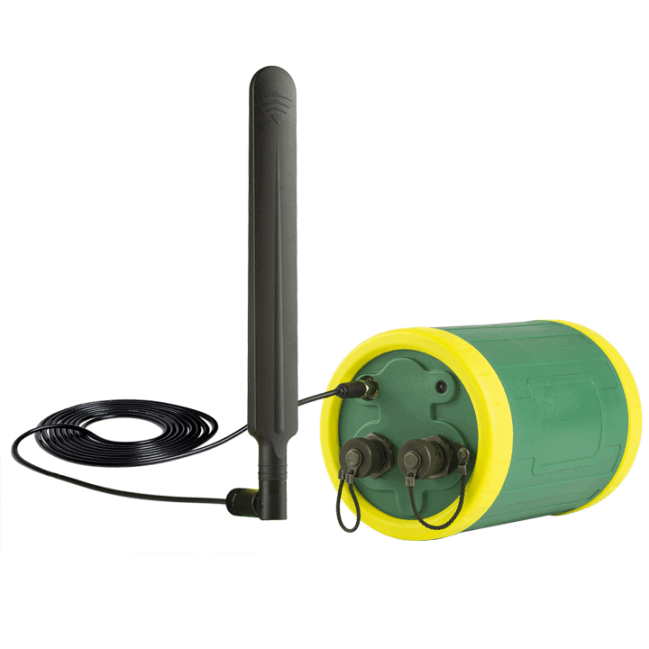

Flomotion ISOMAG MV155 Datalogger with cellular communication

ISOMAG MV155 Datalogger With Cellular Communications

Flomotion ISOMAG MV155 Datalogger With Cellular Communication

Thanks to its shape and reinforced PA6 Nylon housing, the MV155 can be installed outdoors or in aggressive environments always providing NEMA6 protection. The MV155 can be configured with different combinations of both digital and analogue inputs, monitoring different measures, and providing the power supply to the external sensors.

Operating Manual - pdf

4G Operating Manual - pdf

Data Sheet - pdf

MV155 FEATURES:

Smart battery management
Lithium or Alkaline batteries – external power supply available
External sensors power supply available
Cellular wireless communication protocol – optional DNP3 protocol
High level of data security through encrypted transmission
NEMA6 protection with MIL connectors: suitable for harsh environments

Available I/O Module Options:

Up to 4 digital inputs with flow calculation
Up to 2 ON/OFF inputs
Up to 2 analog inputs either for Voltage or Current
Up to 2 analog inputs for Pressure or Temperature
Up to 2 alarm or event digital outputs
PA6 fiber reinforced housing
Anti-intrusion alarm – Real time SMS alert
