Electromagnetic flow sensor for water and wastewater applications, combining low-flow sensitivity, flexible installation and reliable long-term operation.
Why SITRANS FMS500?
SITRANS FMS500 is designed for abstraction, treatment, distribution, irrigation and wastewater applications. It supports sensitive low-flow measurement for leak detection, while approved liner options cover potable and non-potable water applications. Combined with SITRANS FMT020, it forms the SITRANS FM520 system with conductivity measurement, diagnostics and fast commissioning via SENSORPROM™ technology.
Key benefits
Detect leaks earlier
High sensitivity at low-flow velocities helps reveal leaks earlier, improve district metering insight and support more confident balancing of water distribution networks.
Install in any environment
Reduce maintenance efforts
With no moving parts and a rugged design, SITRANS FMS500 supports long operating intervals and keeps maintenance effort low in water applications.
Key details
| Nominal sizes and measuring range | DN 15 to DN 2000 (½" to 80")
0 to 10 m/s |
| Accuracy | Standard accuracy of 0.4% of rate, with optional high-accuracy calibration up to 0.2% of rate |
| Operating pressure | Up to 40 bar (up to 580 psi) (dependent on sensor size) |
| Ambient and medium temperature | Ambient temperature: –20 to 70°C (–4 to 158°F)
Medium temperature: –10 to 70°C (14 to 158°F) |
| Liners, electrodes and sensor material | Liners: EPDM, NBR; Electrodes: Hastelloy C-276, built-in grounding electrodes
Sensor material: Carbon steel, with corrosion resistant epoxy coating |
| Approvals/certificates | Drinking water approvals (for EPDM), e.g. WRAS, NSF/ANSI Standard 61, compliance with Trinkwasserverordnung §14, AS/NZS 4020, GB/T 5750, ACS and Belgaqua
MI-001 cold water (EU) and OIML R49: DN 50 ... DN 2000 (2" ... 80") Support 0 x DN upstream and 0 x DN downstream installation (all orientations) FM – Non-Incendive (NI) Class I, Division 2 ATEX/IECEx – Increased safety (Ex e) Zone 2 |
Featured capabilities

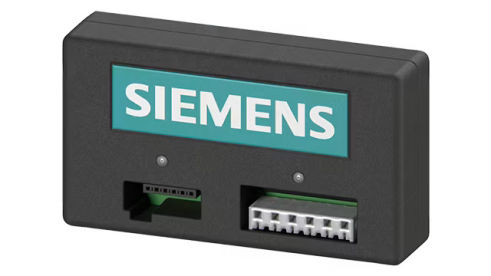

With SITRANS FMT020, SENSORPROM™ stores sensor data and calibration values for fast commissioning and easier transmitter replacement, helping reduce setup errors, shorten service time and return the meter to operation quickly.

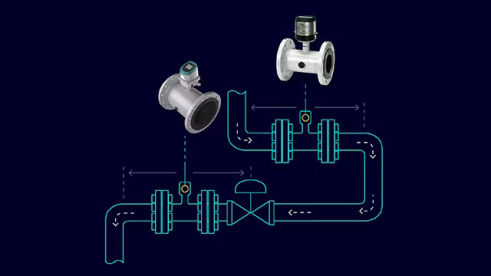

Fully welded sensor is built for direct burial and flooding with IP68 options. Integrated grounding electrodes can eliminate grounding rings. Flowmeter supports 0 x DN upstream and downstream installation in all orientations.

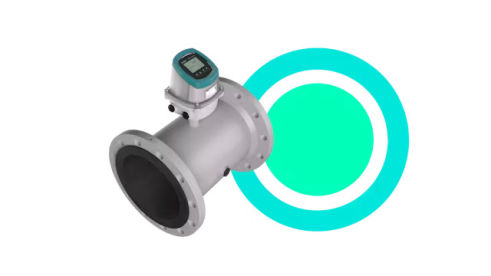

When combined with transmitter SITRANS FMT020 as SITRANS FM520, the flowmeter is Siemens EcoTech certified. Up to 15% lower operational energy use, recyclable packaging, repairability and firmware updates reduce lifecycle impact.

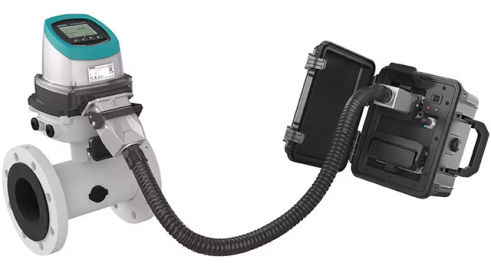

Integrated diagnostics and self-verification continuously check device health, while SITRANS Verificator enables external verification with traceable reporting. Results are available via SIMATIC PDM and SITRANS mobile IQ.
