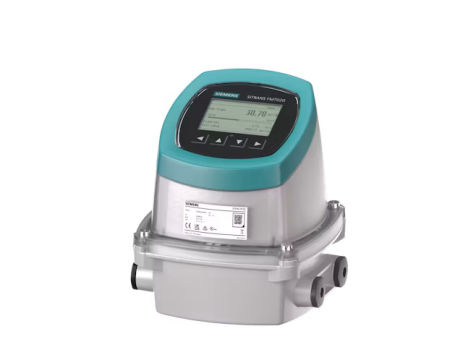

High-performance electromagnetic flow transmitter for accurate conductive liquid measurement with reliable operation, easy commissioning and smart diagnostics.
Why SITRANS FMT020?
SITRANS FMT020 is the next-generation successor to the MAG 5000/6000 transmitter series, providing a future-ready platform for modernization and new projects. It pairs with SITRANS sensors such as SITRANS FMS500 for water and wastewater, SITRANS FMS300 for general process applications, and SITRANS FMS100 for demanding environments requiring high corrosion resistance and high-temperature tolerance.
Key benefits
Modernize existing installations with ease
As the successor to SITRANS MAG 5000 and MAG 6000 transmitters, SITRANS FMT020 supports smooth upgrades for both compact and remote mounting with modular and easy-to-replace electronics.
Detect issues, prevent downtime
Integrate easily into digital plants
Plug-and-play communication modules and multifunction I/O make the transmitter easy to connect to control systems using HART, PROFINET, Profibus DP/PA, EtherNet/IP, Modbus TCP/IP and Modbus RTU architectures.
Key details
| Measured values and accuracy | Simultaneous measurement of volumetric flow, flow velocity and electrical conductivity. Standard accuracy of 0.4% of flow rate, with optional high-accuracy calibration up to 0.2% of flow rate. |
| Communication | HART, PROFINET, EtherNet/IP, Modbus RTU, Modbus TCP/IP, Profibus PA, Profibus DP, Bluetooth |
| Mounting and protection | Polycarbonate housing for compact or remote mounting, with IP66/67 and NEMA 4X/6 protection |
| Power supply | AC version: 100 to 240 V AC, 50 to 60 Hz, 25 VA; DC version: 12–42 VDC |
| Totalizers | 3 totalizers for forward, reverse and net flow |
| Approvals/certificates | CE (LVD, EMC, RoHS), UKCA; UL, CSA certified per standard EN/IEC 61010-1; FM – Non-Incendive (NI) Class I, Div 2; ATEX/IECEx – Increased safety (Ex e) Zone 2 |
Featured capabilities

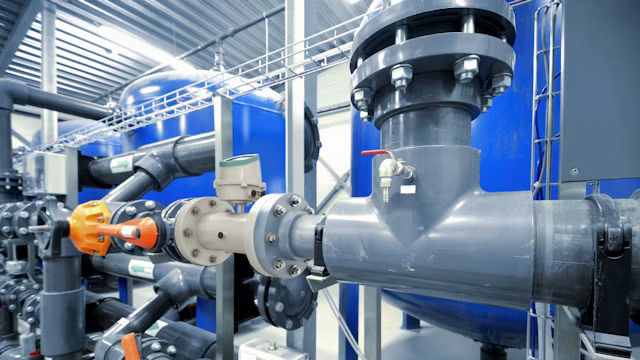

Its robust enclosure is rated IP66/67 and NEMA 4X/6, with high UV resistance and operation from –40 to 65°C.

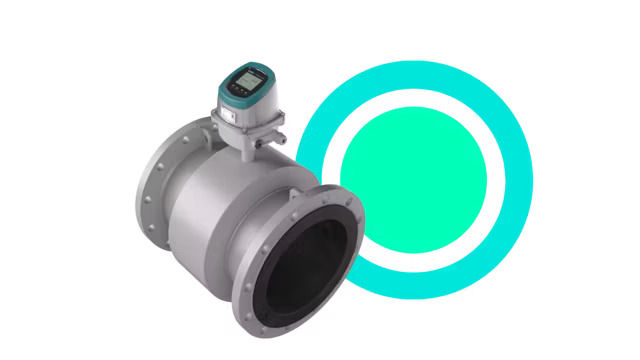

Meeting the criteria of the Siemens EcoTech label for SITRANS FM320 and FM520, the SITRANS FMT020 supports lower lifecycle impact with up to 15% lower energy use, recyclable packaging, firmware updates and repairability.

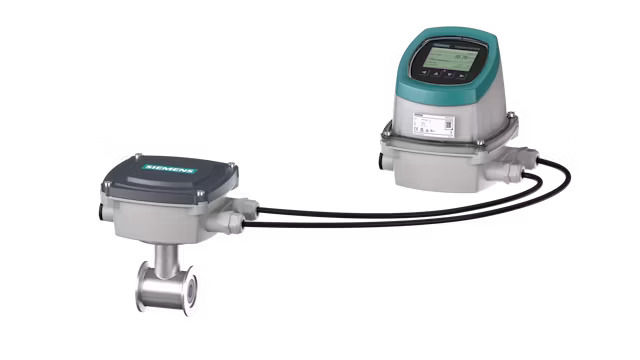

One housing concept supports compact and remote installation, simplifying engineering and spare-parts handling. Plug-and-play communication modules and SENSORPROM enable quick replacement and fast transfer of device settings.
