The radar level-sensor designed by Teledyne ISCO Water specifically for water and wastewater applications.
Teledyne ISCO’s LevelRay non‑contact radar level sensor uses FMCW (Frequency Modulated Continuous Wave) method to measure liquid level. Mounted above the flow, it sends a linearly frequency‑swept radar signal and receives the reflection from the liquid surface. The slight time delay between transmitted and reflected signals creates a beat frequency proportional to distance, allowing the device to calculate level accurately. This non‑contact method minimizes maintenance and performs reliably in applications with chemicals, grease, silt, or suspended solids.
Submersible for continuous operation
In addition to working as a non-contact sensor using radar waves, the LevelRay’s rugged design and IP68 protection allow it to withstand being submerged. When a LevelRay is installed with the optional integrated pressure sensor, level measurement switches from radar to the pressure sensor upon submersion and continues providing level readings while submerged.
Quick and easy flow meter interface
LevelRay outputs level measurement using TIENet® or Modbus RS485 protocols. The TIENet protocol readily allows the LevelRay to interface with Teledyne ISCO DuraTracker or Signature flow meters for level and flow measurement. The flow meter calculates the flow using one of the built-in flow conversions or a user-defined level-to-flow relationship. Using Modbus protocol, LevelRay can be connected to a non-ISCO device for level and flow measurement.
Applications
Standard Features

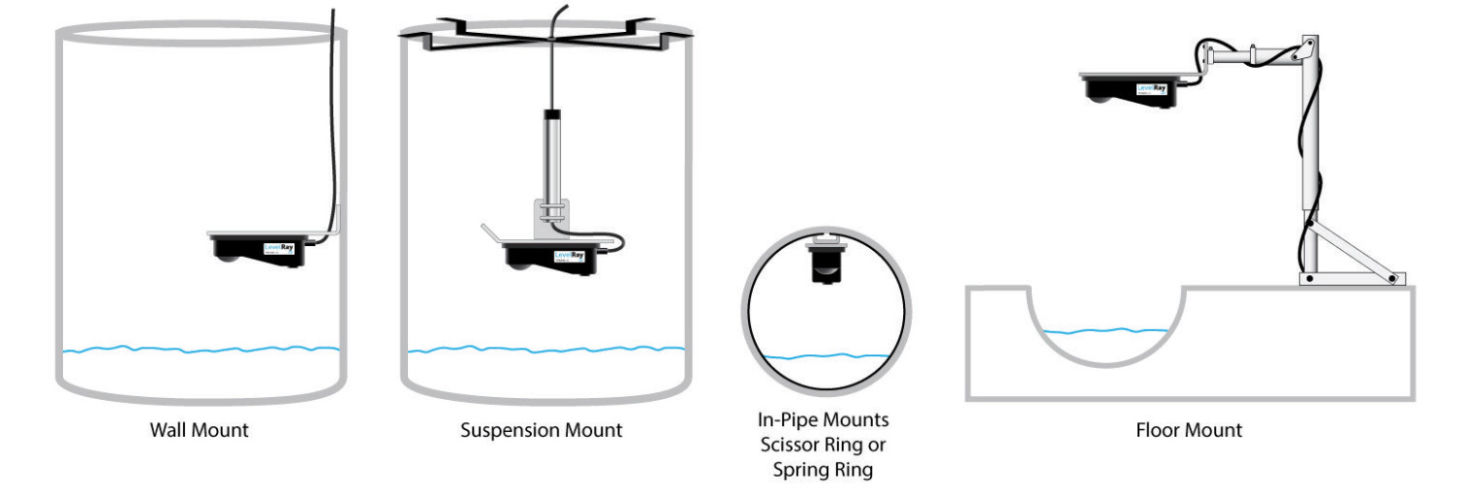

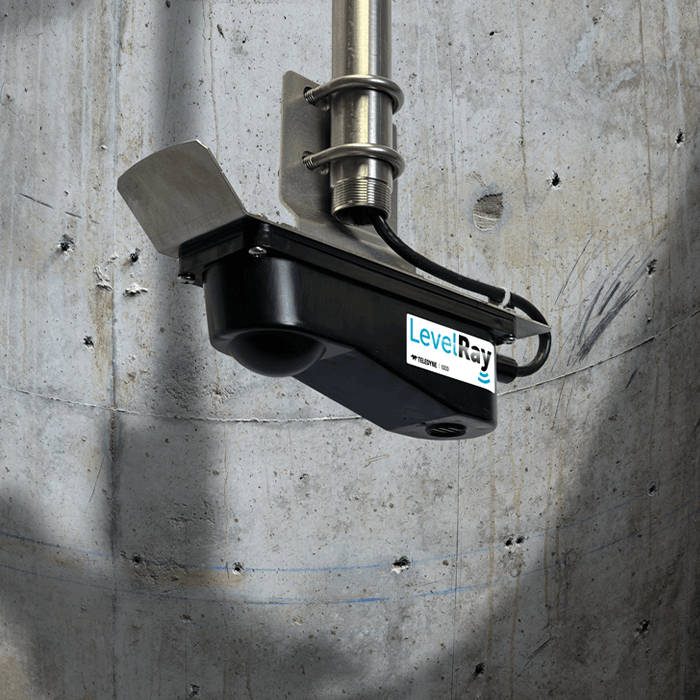

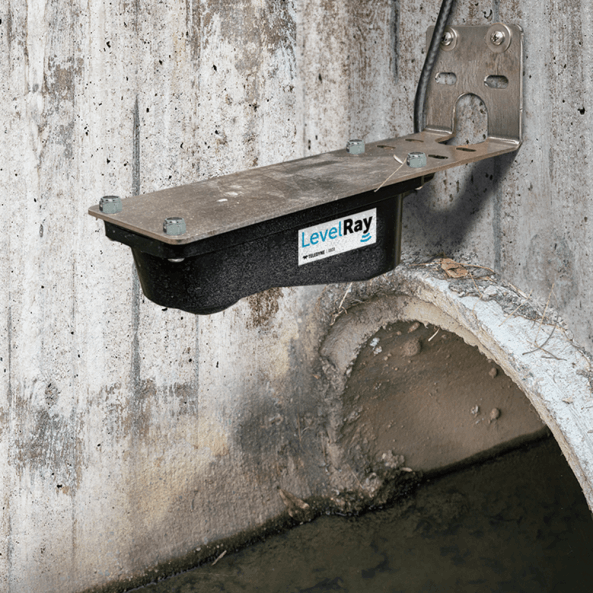

Mounting Options
Specifications
| LevelRay Level Sensor Specifications | |
|---|---|
| Technology: | FMCW Radar |
| Measurement Range: | 0 to 26’ (0–8 m) |
| Accuracy from Sensor Face at 72 °F (22 °C): | ±0.08” ±2 mm |
| Beam Angle: | ≤8° 4° From center line |
| Radar Signal: | 60 GHz |
| Bluetooth™: | 2.4 GHz |
| Deadband: | Zero deadband |
| Size (H x W x D): | 2.5 x 2.38 x 8.5 in
6.35 x 6 x 21.6 cm |
| Weight: | 2.3 lbs. (1.0 kg) for 33 ft (10 m) w/o connector
4.5 lbs. (2.0 kg) for 75 ft (23 m) w/o connector 5.7 lbs. (2.6 kg) for 99 ft (30) m w/o connector |
| Material: | HDPE |
| Cable Lengths: | 33, 75, 99 ft (10, 23 or 30 m) |
| Enclosure: | IP68 |
| Certifications: | CE/UL/CSA/UKCA/RoHS
FCC 47 CFR Part 15 ETSI EN 302 729 |
| Temperature Range: | Operating: -4–160 °F (-20–60 °C) |
| Storage: | -40–176 °F (-40–80 °C) |
| Power Required: | 9–27 Vdc |
| Communication Protocol: | TIENet, Modbus RS485 |
Optional Surcharge Measurement
| LevelRay Level Surcharge Sensor | |
|---|---|
| Technology: | Pressure Transducer |
| Material: | Stainless Steel |
| Certification: | CE EN61326 |
| Temperature Range: | -4–140 °F (-20–60 °C) |
| Measurement Range: | 0–33 ft (0–10 m) |
| Accuracy: | ±0.10% of full scale |
| Stability: | ±0.023 ft/yr (0.007 m) |
