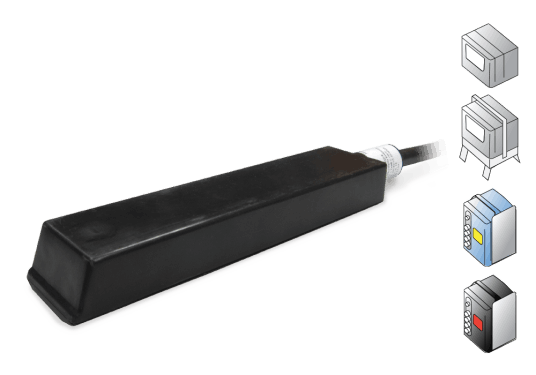

The 350 Ex sensor continuously transmits an ultrasonic signal into the flow stream. The signals are reflected off bubbles and solids and return to the sensor with a frequency shift (Doppler effect) which is translated into velocity. A differential pressure transducer in the sensor measures liquid depth to determine the wetted area.
Flow rate is then calculated by multiplying the wetted area of the flow stream by its average velocity. Certified to MCERTS when paired with a Signature flow meter.
Specifications
| TIENet® 350 Ex Area Velocity Sensor | |
|---|---|
| Probe Dimensions: | 1.9 x 3.3 x 15.2 cm (0.75 x 1.3 x 6.0 in) |
| Materials: | Sensor: Epoxy, chlorinated PC, SST.
Cable: UV-Rated PVC |
| Temperature Range: | 0 to 70 °C (32 to 158 °F) |
| Velocity Measurement Range: | -1.5 to 6.1 m/s (-5 to 20 ft/s) |
| Velocity Measurement: | Bi-Directional |
| Velocity Accuracy: | ±0.03 m/s (±0.1 ft/s) from -5 to 5 ft/s
±2% of reading from 5 to 20 ft/s, Uniform velocity profile |
| Minimum Depth: | 25 mm (0.08 ft) |
| Frequency: | 500 kHz |
| Level Measurement Range: | 0.01 to 3.05 m (0.033 to 10 ft) |
| Level Accuracy: | ± 0.10% Full Scale |
| Maximum Allowable Depth: | 10.5 m (34 ft) |
| Typical Long-Term Stability: | ±0.007 m/yr (±0.023 ft/yr) |
