Non-contacting ultrasonic measurement
The IMP+ non-contacting ultrasonic sensor is designed to be used wherever you need an accurate and reliable level measurement. Its digital echo processing means the IMP+ is perfect for slurries, liquids, or anywhere you need a display telling you the level or analog output to interface with your site control system or drive a display.
There are several measurement ranges available from 200 mm to 10 m (7.9 in to 32.8 ft) and each can be wired for 2 or 3-wire operation. All options feature an LCD display and digital temperature measurement and compensation. When combined with Pulsar’s PC Suite, users are able to download, analyze and store echo profiles, set up the IMP’s parameters, install the new firmware to your IMP, and add a flow curve to be able to configure level to flow linearization.
ATEX Level Sensor
IMP+ I.S. is part of the Pulsar Measurement IMP family, a combined transducer and controller range in one self-contained unit. The IMP+ I.S. unit is certified to ATEX standard EEx ia IIC T4 and IECEx and available with the wetted parts in PVDF, making it ideal for measuring in corrosive or aggressive applications or anywhere where you need an accurate and reliable level measurement. The IMP+ I.S. benefits from our specially designed digital echo processing technique. The IMP+ I.S. is available in three sizes from 3 m to 10 m (9.8 ft to 32.8 ft). With the benefit of the onboard LCD display and keypad, the IMP+ I.S. is straight forward to set up using the menu led programming.
Lower-cost simple measurement
IMP Lite is designed to be a lower-cost alternative to the IMP+ and can be used wherever you need a reliable, non-contacting level measurement. The unique built-in digital echo processing software means that IMP Lite is perfect for slurries or liquids and those applications where you need an onboard display telling you the level, or analog output to integrate with your site control system to drive a display.
The IMP Lite is compact and low-profile, when used on battery power for intermittent (wake-up) applications, it's high-speed boot up of circa 3 seconds maximizes battery life. Active and passive (sourcing and sinking) analog outputs assist with system integration, especially when retrofitting the unit into older installations. Pulsar PC Suite is optional software that adds to the capabilities of the IMP Lite and allows users to download and analyze data, store echo profiles, program IMP Lite parameters, update the unit, and provides a flow curve to be able to configure level to flow linearisation.
Non-contacting sensors for level, volume and flow
The dB ultrasonic range of transducers ranges from 3 m (9.8 ft) measurement range right up to 50 m (164 ft) measurement range and provide a reliable level, volume, open channel flow, pump control, and differential measurement, within both liquid and solids applications. The sensors benefit from highly accurate and repeatable ultrasonic technology and a low power design with standard interconnecting cables - producing extremely high acoustic power to give exceptionally high results in a wide variety of challenging applications.
The non-contacting design of the transducer means they can be fitted with zero interruption to service, and there’s no time-consuming maintenance needed. We offer a wide range of options for our transducer range to suit the application. For example, a shield can be fitted during manufacturing to keep the transducer face clean and dry in applications at risk of submergence, PVDF versions of transducers are available for applications where there are chemicals present, and many more.
All dB Ultrasonic Transducers and dBR Radar Transducers are retrofittable with the Pulsar controller range, so if the needs for your measurement change, your measurement system won’t have to.
Simple level measurement
The Blackbox 130 is a compact, low-cost, intelligent controller that offers non-contacting level measurement. Available as a wall mount option with an integral display allowing users to locally program the unit giving an instant indication of level. The Blackbox 130 unit features a 4-20mA output, and two alarm or control relays.
Economical and easy to operate, Blackbox units can be set-up using the integral keypad on the controller and optional interface cable. Benefitting from reliable digital echo processing (DATEM) the unit is able to produce accurate and repeatable level measurement. Compatible with all dB Transducers and mmWAVE Radar sensors, the unit is able to measure from 125 mm (0.41 ft) right through to 40 m (130 ft).
Non-contacting ultrasonic level control and flow measurement
Ultra 5 provides flexible and reliable non-contacting ultrasonic level and volume measurement, advanced pump control, and measures open channel flow, with different mounting options available to suit the application. The Ultra 5 features the Ultra Wizard, an onboard, menu-driven software tool that allows the user to quickly and simply set up an Ultra 5 unit for a specific application.
Using a 'Quick Setup' menu, specific to the application, it allows parameters such as empty and full distances and alarm/control relay settings to be entered. The Ultra Datalogger provides all wall mounted Ultra Controllers with data logging functionality, recording a wealth of information onto the supplied 8 GB Micro SD card, enabling the user to log data for the lifetime of the product.
Twin-channel ultrasonic measurement with the ability to combine applications
The UltraTWIN offers an opportunity to combine ultrasonic level/volume monitoring, pump control, or open channel flow measurement in a 2-channel ultrasonic system. Each channel is user-configurable to operate independently either as a full-function open channel flow monitor - calculating flow rates, a pump control system, or as a level and volume monitoring unit for liquids or solids - calculating volumes and providing alarms.
A powerful data logging solution can be added to the UltraTWIN system, offering Pulsar’s PC Ultra Log Software which records and charts data and trends in an easily accessible form. The controller may also be upgraded to include RS485 communications, Modbus, or Profibus DPV0 or V1 protocols.
Combines ultrasonic level and flow measurement
The Ultimate Controller is your ‘one-stop solution’ for small pump station control. The Ultimate is a control system that combines ultrasonic level, flow measurement, RTU, and advanced pump control in one economic, easily programmed, modular unit with a dedicated web server remote control and touchscreen HMI with integrated WITS protocol. This unit is modular and expandable, with peripherals offering unlimited I/O, pump power monitoring, and even a remote infra-red camera allowing real-time viewing of your application. The Ultimate Controller is designed to offer the end-user end to end and operational cost savings by high energy cost avoidance, pre-blockage detection, automatic resets, and the selection of the most efficient pump. Capital cost saving by combining HMI, PLC, RTU, and level control with no costly logic programming.

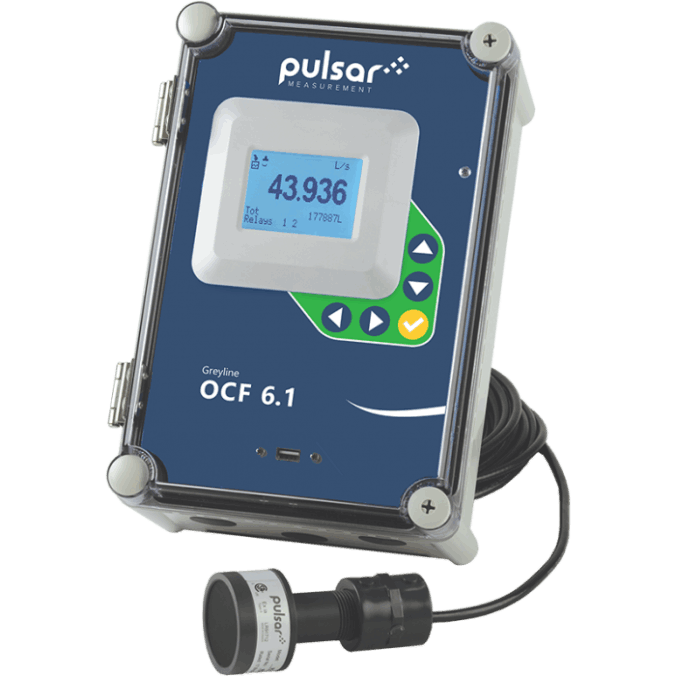

The Greyline OCF 6.1 Open Channel Flow & Tank Level Meter is a perfect solution for your non-contacting measurement needs. You're going to be pleased with the new features of the OCF 6.1, replacing the OCF 5.0 Open Channel Flow Meter and SLT 5.0 Level Tank Monitor.
Continuously monitor, display, totalize and data log flow through any flume or weir. The Greyline OCF 6.1 includes a non-contacting ultrasonic sensor that mounts just 203.2 mm (8 in) above the flowing water. It is accurate (±0.25%) and reliable.
The Greyline OCF 6.1 includes a built-in 26 million point data logger and flow reporting system. Use the isolated 4-20mA to transmit flow to remote chart recorders or displays, and the control relays are programmable for level/flow alarm and flow proportionate pulse (for samplers, chlorinators, or remote totalizers). An Intrinsic Safety Barrier is optional for sensor and cable installation in hazardous rated locations. The separate, watertight electronics/display enclosure is mounted at a convenient location within 150 m (500 ft) of the sensor.
Hybrid Pump Station Level Controller
The Greyline PSL 5.0 Pump and Lift Station Level Controller is ideal for sewage pump stations, lift stations, wet wells, and tank level control with a non-contacting ultrasonic sensor mounted above the liquid. The PSL 5.0 Level Controller has six independently programmable control relays for pump or valve control, level alarms, dialers, temperature alarm, and echo-loss alarm.
Mount the non-contacting, ultrasonic sensor in the tank or wet well and install the watertight electronics in the control room or any location within 150 m (500 ft). Use the simple menu system and built-in keypad to set up measurement range, relay set points, and pump alternation sequence. A relay/pump run time report is updated and stored automatically for viewing on the PSL 5.0 backlit LCD display.
For hazardous locations, the ultrasonic sensor is rated intrinsically safe with an optional safety barrier. It is rated for measurement ranges up to 10 m (32 ft), or use the optional PVC Sensor rated for 15.6 m (50 ft) measurement range.
Dual-Technology Sensor Feature for Redundant Level Monitoring
Connect a submersible pressure sensor or other 4-20mA level transmitter to the PSL 5.0 for fail-safe hybrid sensing. The PSL 5.0 will auto-calibrate the redundant sensor and if the signal is lost to the ultrasonic sensor, the redundant sensor will seamlessly take over monitoring until the signal resumes from the ultrasonic. The redundant sensor is continuously monitored to ensure availability during primary sensor failure.

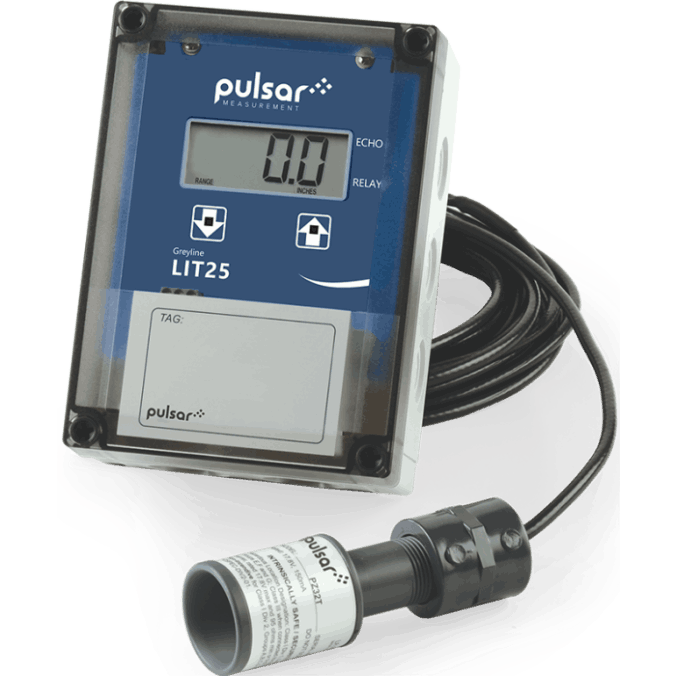

Level Indicating Transmitter
The Greyline LIT25 Level Indicating Transmitter displays, controls, and transmits level. Mount the non-contacting ultrasonic sensor at the top of your tank and the compact, watertight electronics/display enclosure at a convenient location nearby. Operators can calibrate the LIT25 with its 2-button keypad, without climbing the tank. Use the built-in relay for level control or alarm, the large 4-digit display for local indication, and the isolated 4-20mA output to transmit level to a PLC.
The standard ultrasonic sensor measures liquid levels up to 10 m (32 ft) and includes automatic temperature compensation. Choose the optional all-Teflon sensor for chemical compatibility or one rated to 15.6 m (50 ft) range. All ultrasonic sensors are available with optional intrinsic safety for installation in hazardous rated locations. The LIT25 can also be ordered with gauge-type pressure sensors for special applications.
The Sludge Finder 2 is used in thousands of applications worldwide to detect sludge blanket levels in primary, secondary, and tertiary settlement tanks either with stationary or traveling bridges, clarifiers, gravity thickeners, or sequencing batch reactor (SBR) systems. The two-part system includes a purpose-built self-cleaning Viper Transducer that uses sonar technology, submersed into the liquid, and detects the echoes from the material. Any distinct change in density is reflected to the transducer – the time taken for the echo to return is transmitted to the controller and the distance to the interface is calculated.
The Sludge Finder 2 offers a wealth of different options depending on the application requirements, including single or dual sensor inputs, installation accessories, communication outputs, and PC Software Suite that offers Sludge Finder 2 software that can be used to record and save all the parameters from your sludge blanket level measurement applications.
