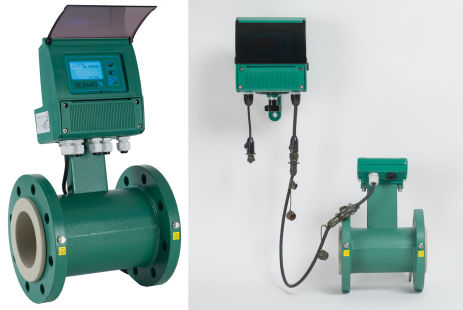

The sensor goes into the flow stream and the converter can be mounted right on top of the sensor or located remotely.
FIRST – SELECT THE FLOW SENSOR THAT FITS YOUR APPLICATION
When selecting a flow sensor consider the expected flow rates (min/max), fluid type (corrosive), temperature range, mounting style (flanged, wafer, NPT or tri-clamp) and location (wet or dry).

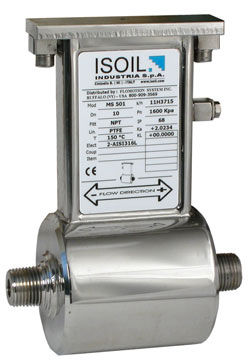

1/8″ through 3/4″ sizes for flows from 0.04 gpm to 45 gpm. Handles pressures up to 230 PSIG. Stainless steel construction with PTFE lined flow tube. Temperatures up to 212F.

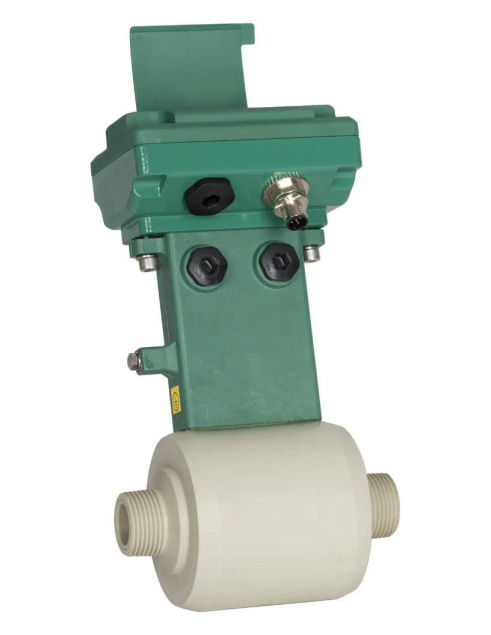

1/8″ through 3/4″ sizes for flows from 0.03 to 50 gpm. Standard pressure is 230 PSI @ 70F. Polypropylene body and liner. Low cost, easy to install sensor with threaded NPT process fittings. temperatures up to 140F.

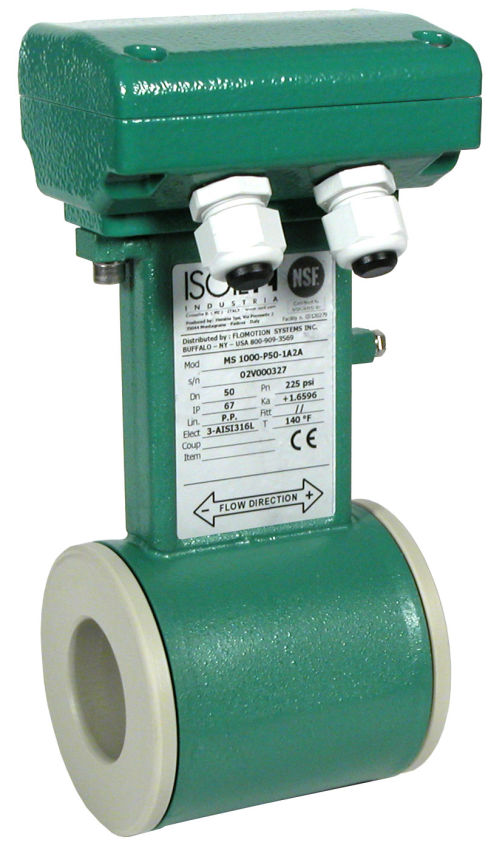

1″ through 16″ sizes for flows from 2.45 to 20,698 gpm. Pressures to 580 PSI. Polypropylene, Ebonite or PTFE liner. Low cost, easy to install wafer mounting. Fluid temperatures up to 300F. Shown with cable junction box.

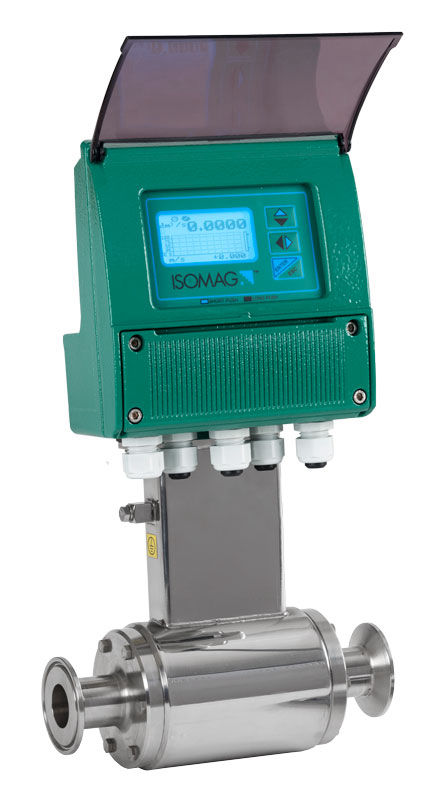

1″ through 4″ sizes for flows from 2.4 to 1294 gpm – Standard pressure is 230PSI @ 70F. PTFE liner. Temperatures up to 300F. Tri-clamp fittings are perfect for food, beverage and pharmaceutical applications. Rated for 3A sanitary approval. Shown with MV110 Converter.

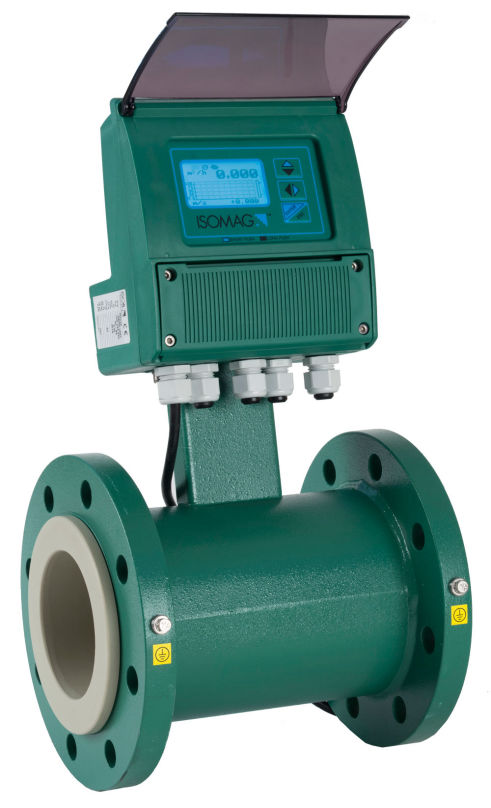

1″ through 48″ sizes for flows from 2.4 to 179,400 gpm. Pressures to 5600 PSI @ 70F. Process temperatures up to 300F. Polypropylene, Ebonite or PTFE liner. Shown with the MV210 Converter.
Small Bore Electromagnetic Flow Meter with Integral battery-powered converter. Suitable for flow control where flow might need to be controlled according to the temperature such as cooling systems on tooling machines, washing systems, etc.
Suitable for flow measurement in liquids with a minimum conductivity of 20 µS/cm. Measuring accuracy ± 1% of reading. Housing in Noryl reinforced with 30% fiberglass, protection rate IP 67, max liquid temperature 185°F.

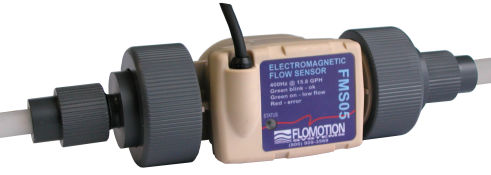

Economical small-diameter flow sensors for reliable full-pipe flow measurement with low-cost and fast installation. The FMS Series electromagnetic flow meter easily connects to many common controllers.
NEXT – SELECT THE CONVERTER THAT FITS YOUR APPLICATION
Consider your needs for a Power Supply, Inputs, Outputs, Local or Remote Mounting and Accuracy.

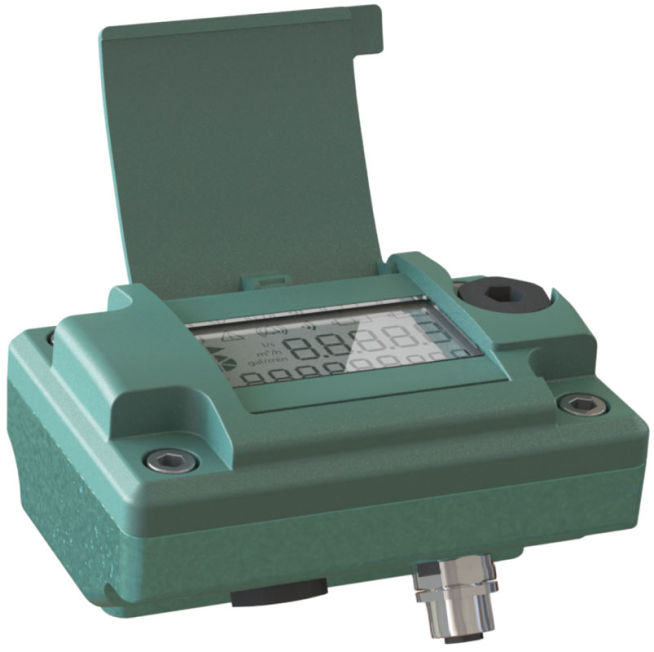

Ultra compact electromagnetic flow meter converter suitable for connection to full-bore ISOMAG® sensors up to 16″
Low-cost converter with large backlit display and three button keypad for programming. Mounts on top of flow sensor or on a wall. Available features include Empty Pipe Detection, PC programming, Pulse/frequency/alarm outputs. dual 4-20mA outputs. Plastic or epoxy-coated aluminum, NEMA 6 enclosure.

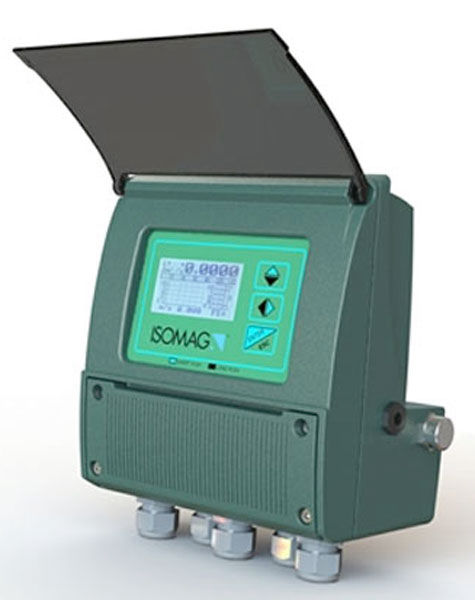

Rugged aluminum enclosure with backlit LCD graphics display and three external programming keys. Mounts on top of flow sensor, on a wall or in a panel. Features empty pipe detection, and includes pulse, frequency and alarm outputs. Front panel keypad or PC programming. 4-20 mA ouput and RS485 communications are standard. NEMA 6 enclosure.

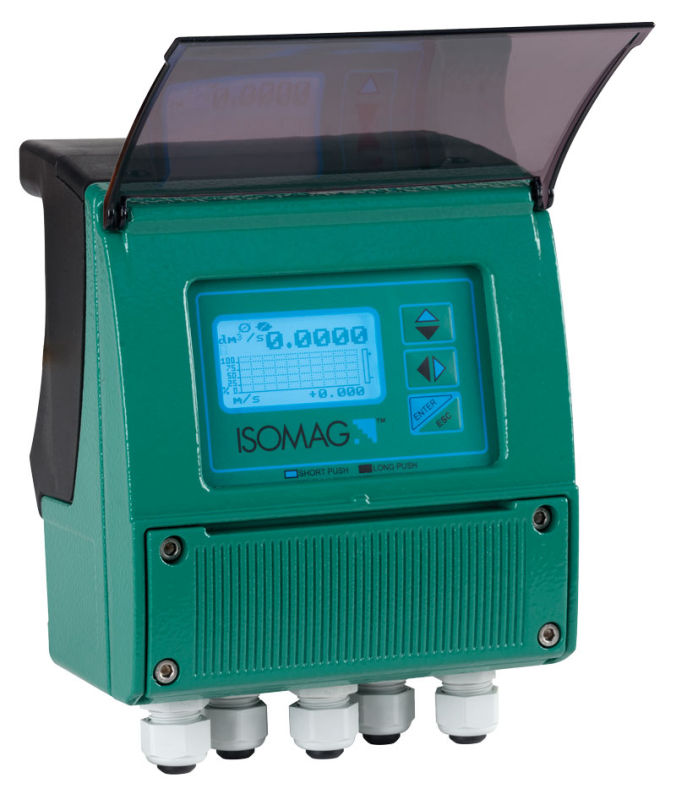

Includes a large graphics display and three external programming keys. Mounts on top of the flow sensor or on a remote panel. Features up to 15-year battery life. Can be configured for lithium, rechargeable or alkaline batteries. Empty pipe detection, 4GB datalogger, pulse, frequency and alarm outputs. Optional RS485 / MODBUS communications. NEMA 6 (IP67) enclosure. Up to 15 year battery life with internal lithium cells.

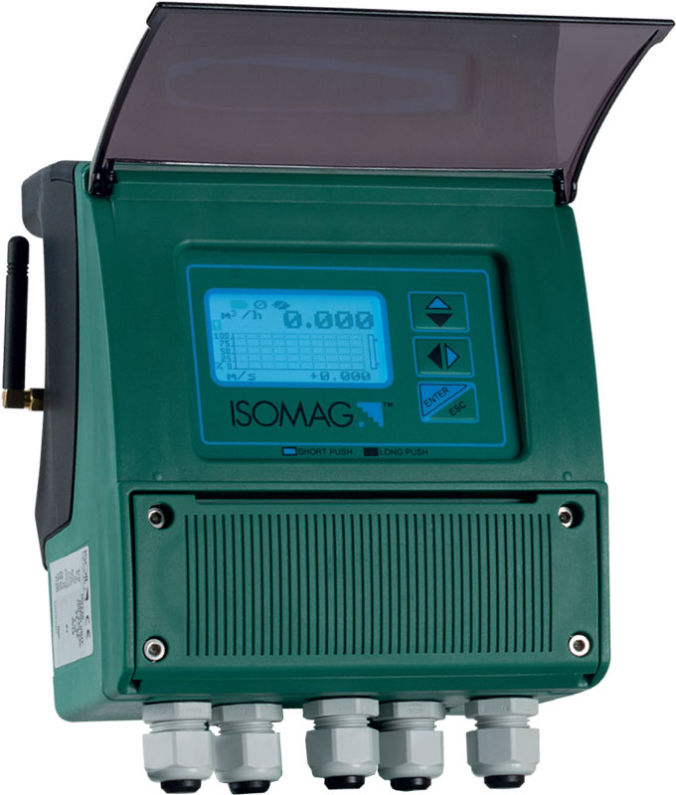

Battery powered converter with optional cellular communications (MV255) includes a large graphics display and three external programming keys. Mounts on top of the flow sensor or on a remote panel. Features up to 15-year battery life. Can be configured for lithium, rechargeable or alkaline batteries. Empty pipe detection, 4GB datalogger, pulse, frequency and alarm outputs. Optional RS485 / MODBUS communications. NEMA 6 (IP67) enclosure. Up to 15 year battery life with internal lithium cells. Can manage up to 2 pressure or temperature sensors.

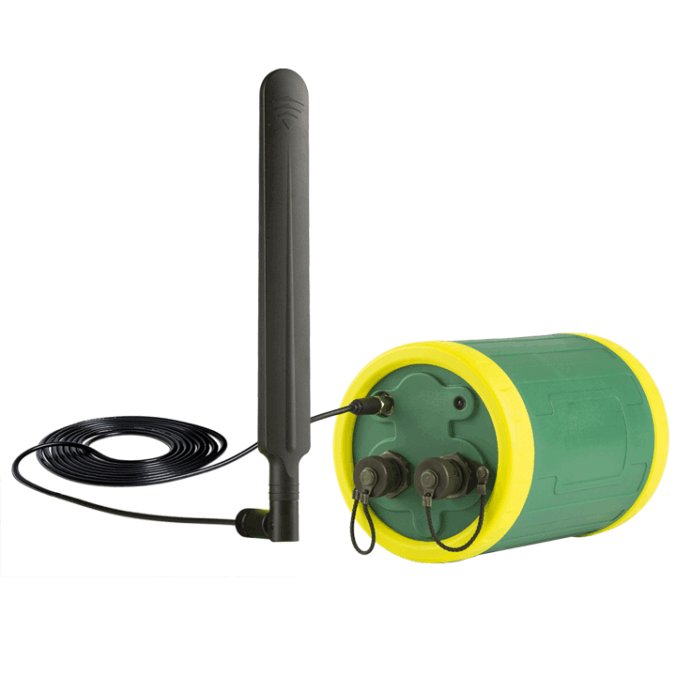

Wireless communication, Lithium or alkaline batteries, Multichannel logger, Encrypted data. Designed for harsh environments The MV155 is a multi-parametric data logger with cellular connection. It can be powered by lithium or alkaline batteries or by an external power supply.
Grounding rings provide improved performance by eliminating stray AC or DC electrical noise present in the fluids. Standard grounding rings are available in 304 SS with other materials available upon request.
